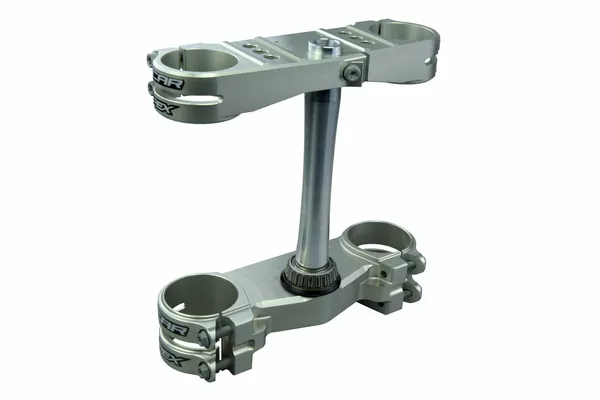

Apex Triple Clamp

The benefits of this system over a traditional triple clamp:


Minimized Distortion: The fork tubes undergo less distortion in the clamping area, which greatly enhances the fork's responsiveness


Enhanced Safety: The split clamps design offers greater protection against fork twisting through its self-locking mechanism.


Accurate Clamping Force: The clamping screws function independently, enabling more precise control over the clamping torque.


Technical Details


Manufactured from highest grade aerospace aluminium 7075-T6


The Top clamp offer 6 different handlebar mount positions: 3 on the clamp, as well as reversible bar mounts that offer fore and aft positioning.


It use the M12 mounting interface: M12 bolts threaded directly into the top triple clamp with wide groove to locate the bar mount.


Supplied with steering stem and with the steering bearing already pressed on


These clamps have split clamps to improve suspension plushness


100 % alignment of the fork tubes


Perfect flexibility – adapted precisely to the OEM forks


Optimally tuned steering stem stiffness


Improved strength and rigidity


Offers better control.

Material	7075-T6 Aluminum
Product Name	Clamp
Type	Triple
Units	Each
Vendor Part Number	S2421X
