Mo.view Blade Handlebar End Mirror Black

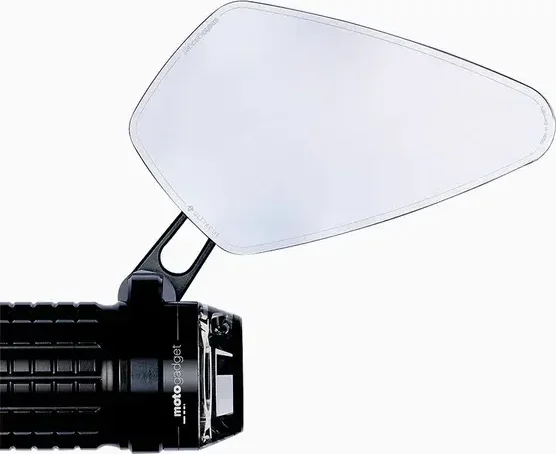

The small and reduced handlebar end mo.view Blade mirror can be mounted above or below the handlebars. The angle of the mirror arm can be individually selected.


Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.


The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.

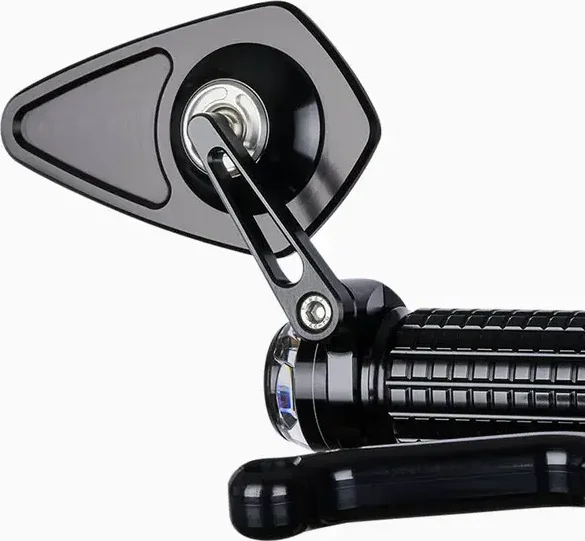

The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality. All screws are made of stainless steel. The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or fallen out glasses are simply not possible.

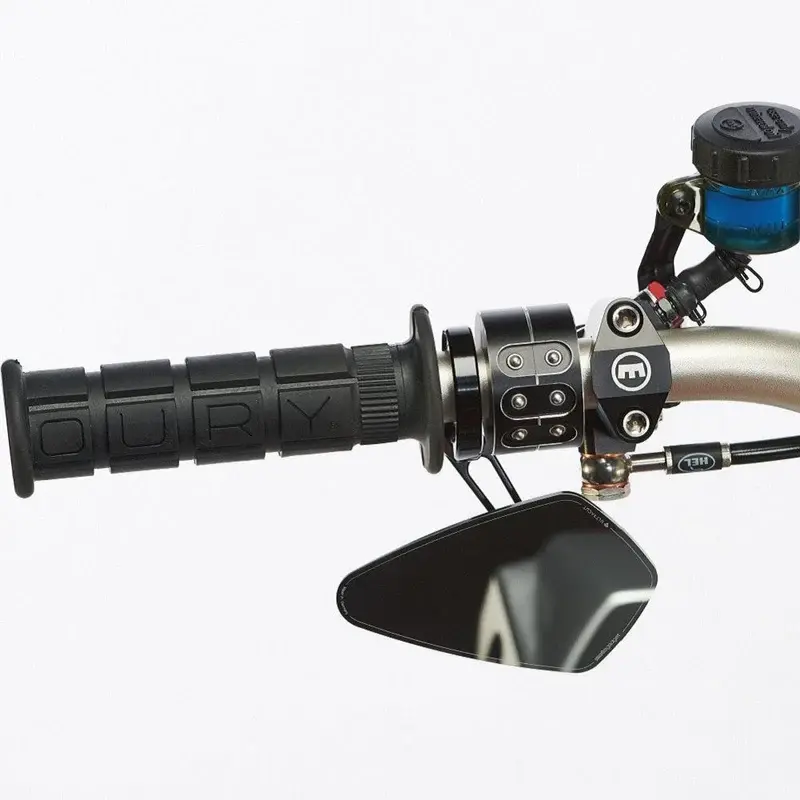

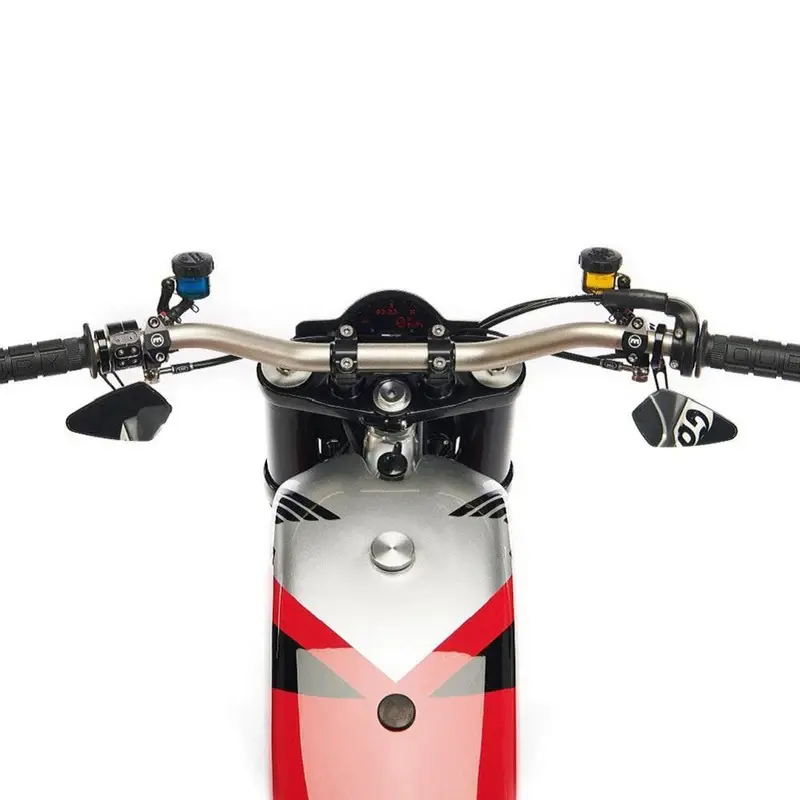

The handlebar end mirror can be mounted above or below the handlebar. The small arm can be swivelled. The mirror is suitable for the right and left side. Mounting is directly on the handlebar end (22 mm and 1 inch) or if the grips and fittings can not be moved, using the mo.view bar adapter.


Mirror body width: 100 mm.


Mirror body height: 60 mm.


Thickness of the mirror body without ball head: 4 mm.


Length of the mirror arm: 61 mm.


Mirror surface: approx. 37.5cm².


Clamp diameter: can be used for 22 mm and 1 inch handlebars.


Clamp width: 8 mm.


Weight: 94 g.


Scope of delivery: 1x mo.view blade mirror (without ECE marking) with arm, 1x clamp & QR code for mounting and operating instructions.


This mirror is not approved for use on public roads within the EU.

COLOR/FINISH	Black
MATERIAL	Aluminum
MIRROR HEAD HEIGHT	60 mm (2-3/8'')
MIRROR HEAD WIDTH	100 mm (3,9'')
MOUNTING STYLE	Handlebar End
PRODUCT NAME	Mirror
TYPE	Handlebar End
UNITS	Each
VENDOR PART NUMBER	7001021
