Cam Chest Kit For M8

Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish

Passage plugs are removable for servicing

Independent scavenge sections for the flywheel cavity and cam chest

Debris screens in both scavenge pickups

Increased oil flow capacity on both the feed and the scavenge sides

Adjustable pressure relief valve is adjustable with the unit installed in the engine

S&S premium tappets

Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations

Made in the USA

Includes cam chain tensioner.

Will fit M8 with VVT.

540 cam is designed for acceleration torque in 124" and larger engines.
Enhances torque output in 4.25" big bore kits.

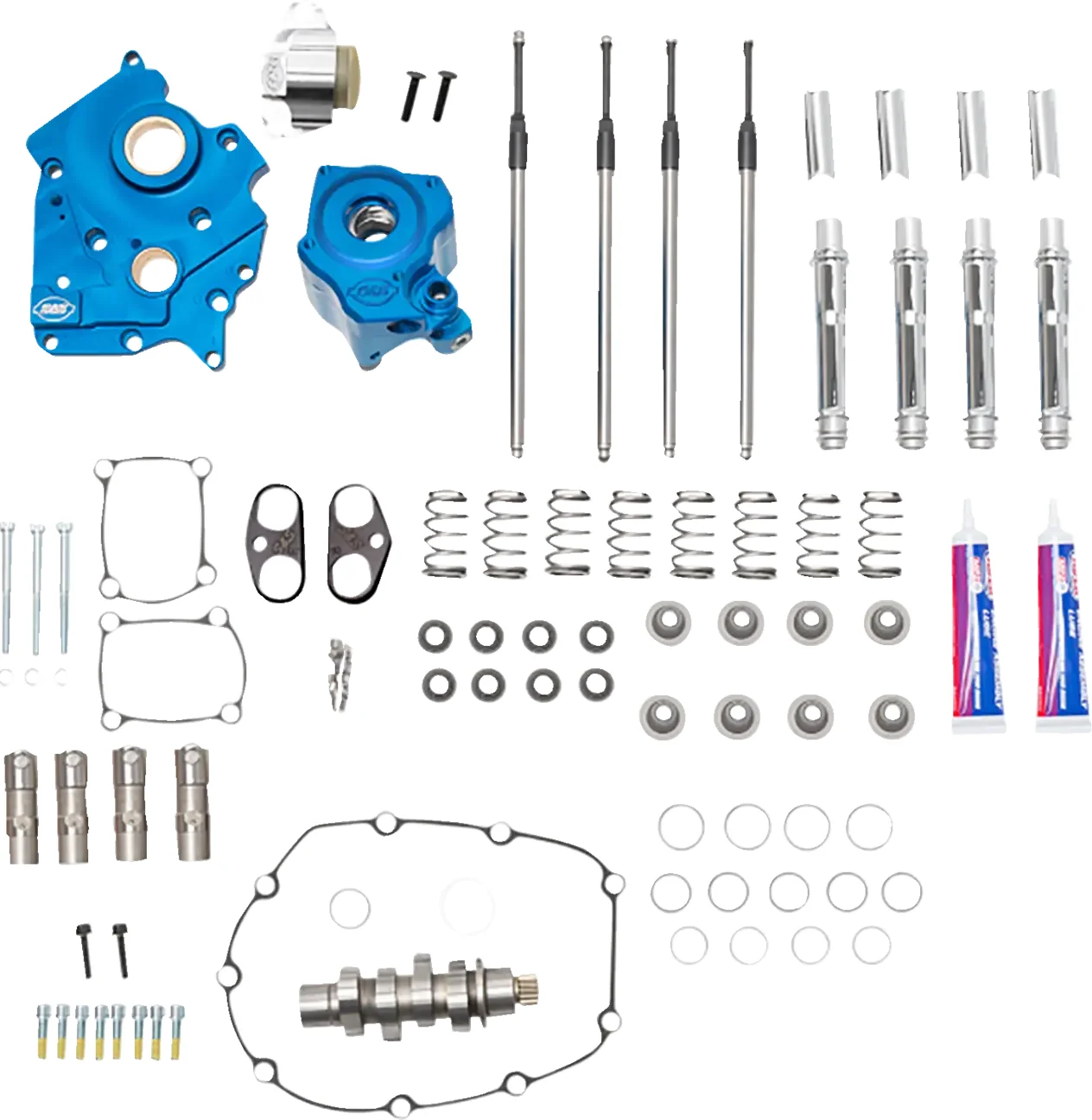

Kit Includes:
• Quickee Pushrod Kit with Chrome Covers
• Tappet Cuffs Lifter Guide
• Oil Pump with Cam Plate
• Hydraulic Tappet Set
• 540C Camshaft Kit
• Spring Kit
• Cam Chain Tensioner.

APPLICATION	Water Cooled
EXHAUST CLOSE	33,9° Front, 26,9° Rear
EXHAUST DURATION	235,1° Front, 244,6° Rear
EXHAUST LIFT	0,540"
EXHAUST LIFT AT TDC	0,262" Front, 0,216" Rear
EXHAUST LOBE CENTERLINE	83,6° Front, 95,4° Rear
EXHAUST OPEN	21,2° Front, 37,7° Rear
FEATURES	Chrome Pushrod Tubes
GRIND	540C
INTAKE CLOSE	30,6° Front, 28,7° Rear
INTAKE DURATION	228,3° Front, 223,6° Rear
INTAKE LIFT	0,540"
INTAKE LIFT AT TDC	0,175" Front, 0,161" Rear
INTAKE LOBE CENTERLINE	96,4° Front, 96,9° Rear
INTAKE OPEN	17,7° Front, 14,9° Rear
PRODUCT NAME	Camchest Kit
TYPE	Chain Drive
UNITS	Kit
VENDOR PART NUMBER	310-1116B
